Refinishing and Window Coamings

February, 2001: The Paynton family heat gun comes out of retirement and Maranee's cabin sides are again stripped to bare wood in an effort to further smooth out the surface, and to restore the curved front window coamings, which were cut off sometime in the 1960s. It was evident that the cabinsides had been stripped using a belt sander at some point in her history.

During this process, all of the original fittings and window J-moulding were removed and replaced with stainless.  As before, using a series of different grit sand papers with a long block was back-breakingly difficult work, but we had decided to use no power sanders on the surface, to reduce the chance of swirl marks in the stain.

With the help from fellow wooden boat owner Jan Skillingstead, a bevel was made at the corner of the main superstructure for the addition of the front window coaming. This is a feature commonly seen on pre-war cruisers, but had been removed from Maranee nearly forty years earlier.  Then, with assistance from Darren Olson, a good friend and restoration specialist at the Seattle Hydroplane Museum, three planks of Philippine mahogany were cut to a pattern template taken off of a sistership.  They were glued to match the original seams. The coaming was screwed into place and made flush with the original planking of the superstructure. Mahogany bungs were then used to fill the screw holes, shown above glued in place before being faired down to match the level of the planking.  Since the new Philippine mahogany is significantly lighter in color than the original wood used by Chris-Craft, repeated over-staining and color matching was necessary.

A unique moment in Maranee's history: Turning around to begin the same process on the port side, Maranee ventures out with only one of her window coamings in place.

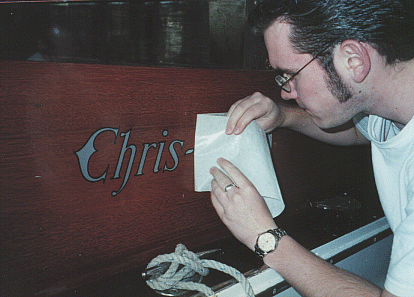

Chris-Craft logo decals are put in place between the mid-ship's vents on both sides. The decals applied to Maranee are of a fairly new technology and are made by 3M. Called Scotch-cals, they are similar to vinyl lettering and are applied using their own adhesive separated by a backing sheet. Here one of Maranee's decals is being rubbed down to be sure of a permanent seal.  The backing sheet is then removed slowly to reveal a professional-looking decal.
